Key Features

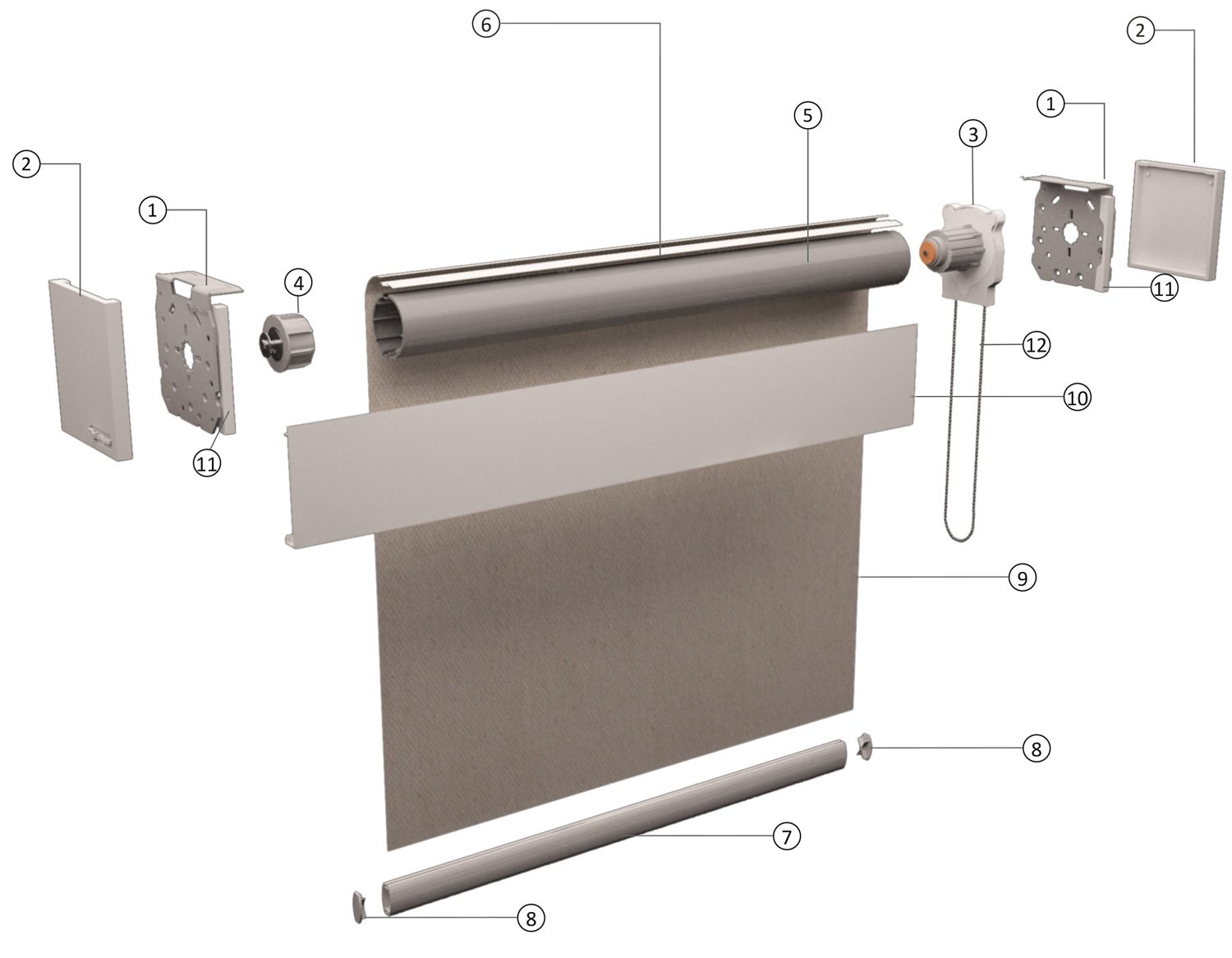

Manual chain roller system
- 4:1 ratio chain mechanism for easy operation on large blinds
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 1.85 inch diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)
- 1. Mounting brackets
- 2. Bracket end cap
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Fabric
- 10. Optional fascia
- 11. Fascia support
- 12. Ball chain
Key Features

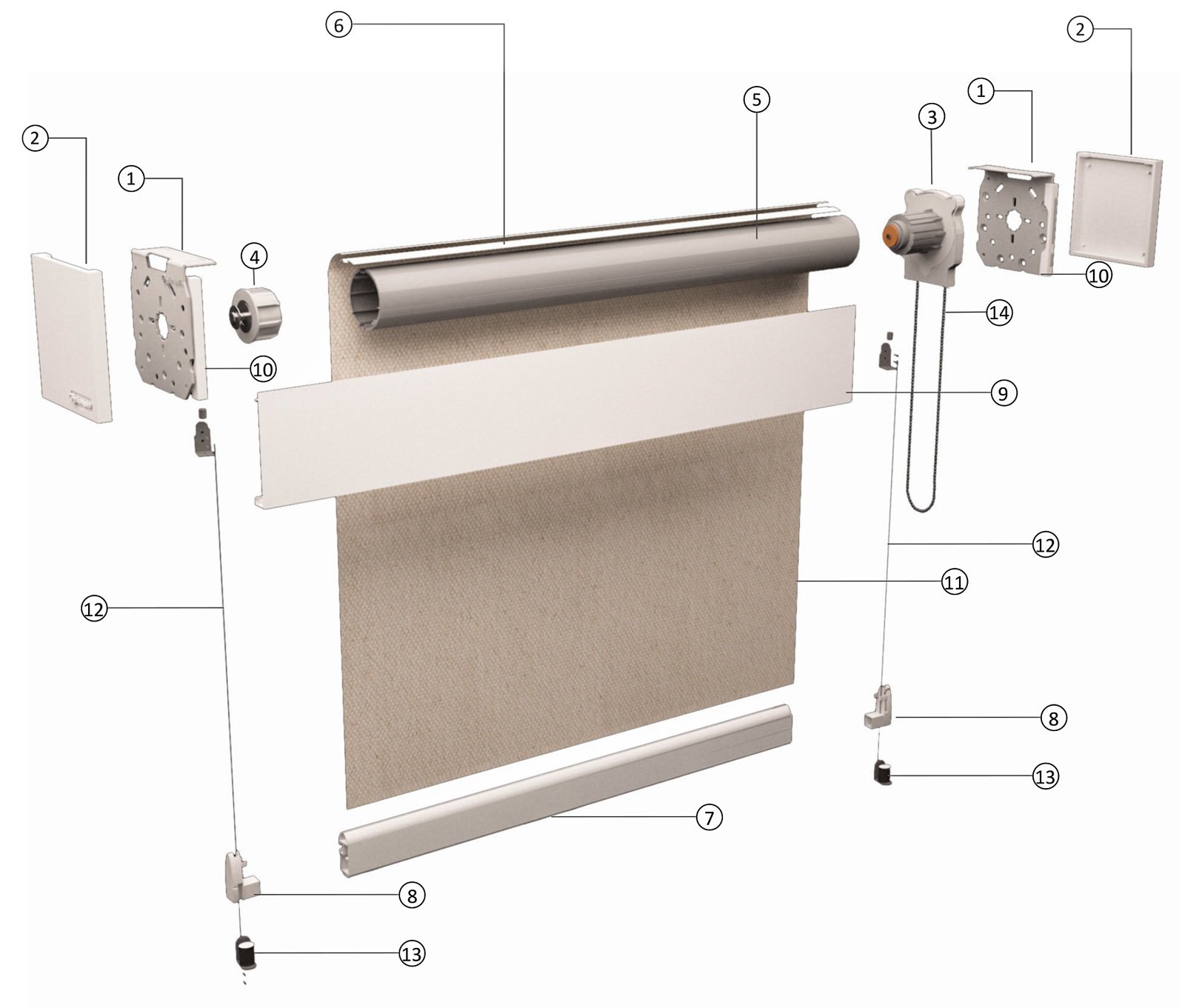

Roller system with guide wire
- 4:1 ratio chain mechanism for easy operation on large blinds
- The guide wire will stabilize the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection duty 1.85 inch diameter tube
- Aesthetic end cap
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)
- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Guide wire
- 13. Holder guide wire
- 14. Ball chain
Key Features

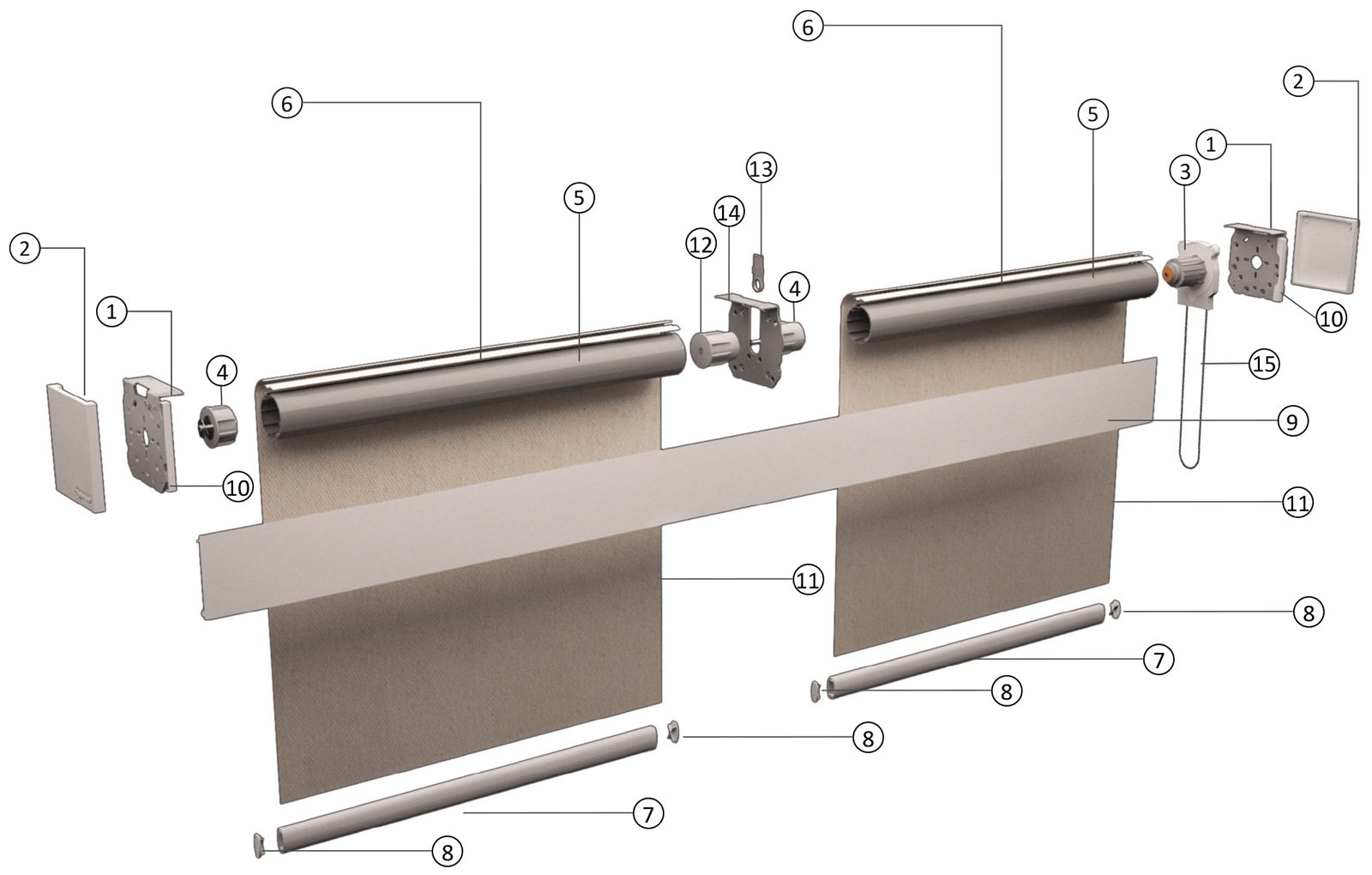

Multi band roller system
- 4:1 ratio chain mechanism for easy operation on large blinds
- Up to 9 m² multi band operation with a single mechanism (max fabrics weight 8 kg)
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 1.85 inch diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)Only with exposed bottom bar)
- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Center end plug
- 13. Bearing plug
- 14. Center support bracket
- 15. Ball chain
Key Features

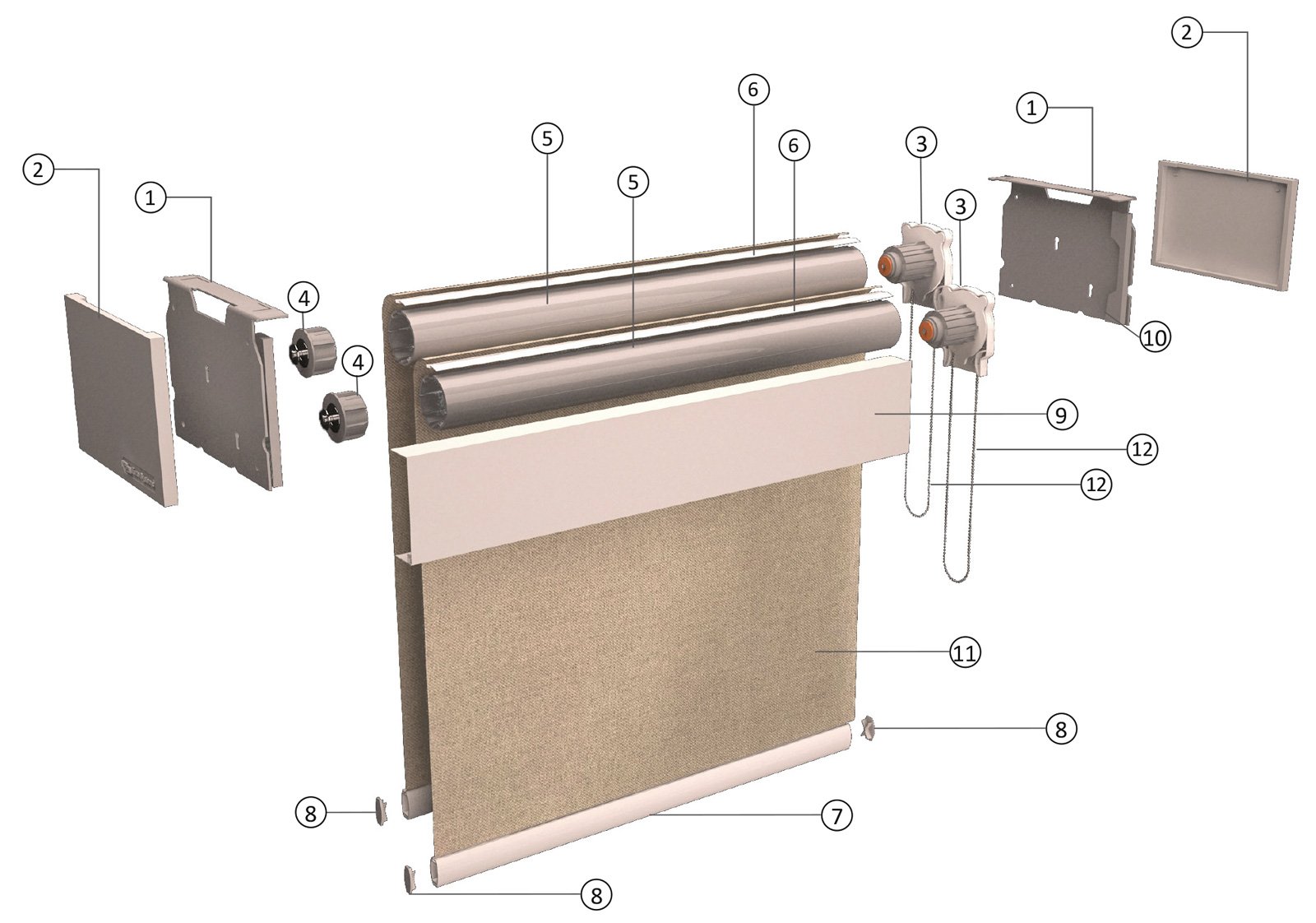

Double blind roller system
- 4:1 ratio chain mechanism for easy operation on large blinds
- Double blind with single bracket system designed to install both sunscreen & blackout blinds
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 1.85 inch diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)
- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Ball chain
Key Features

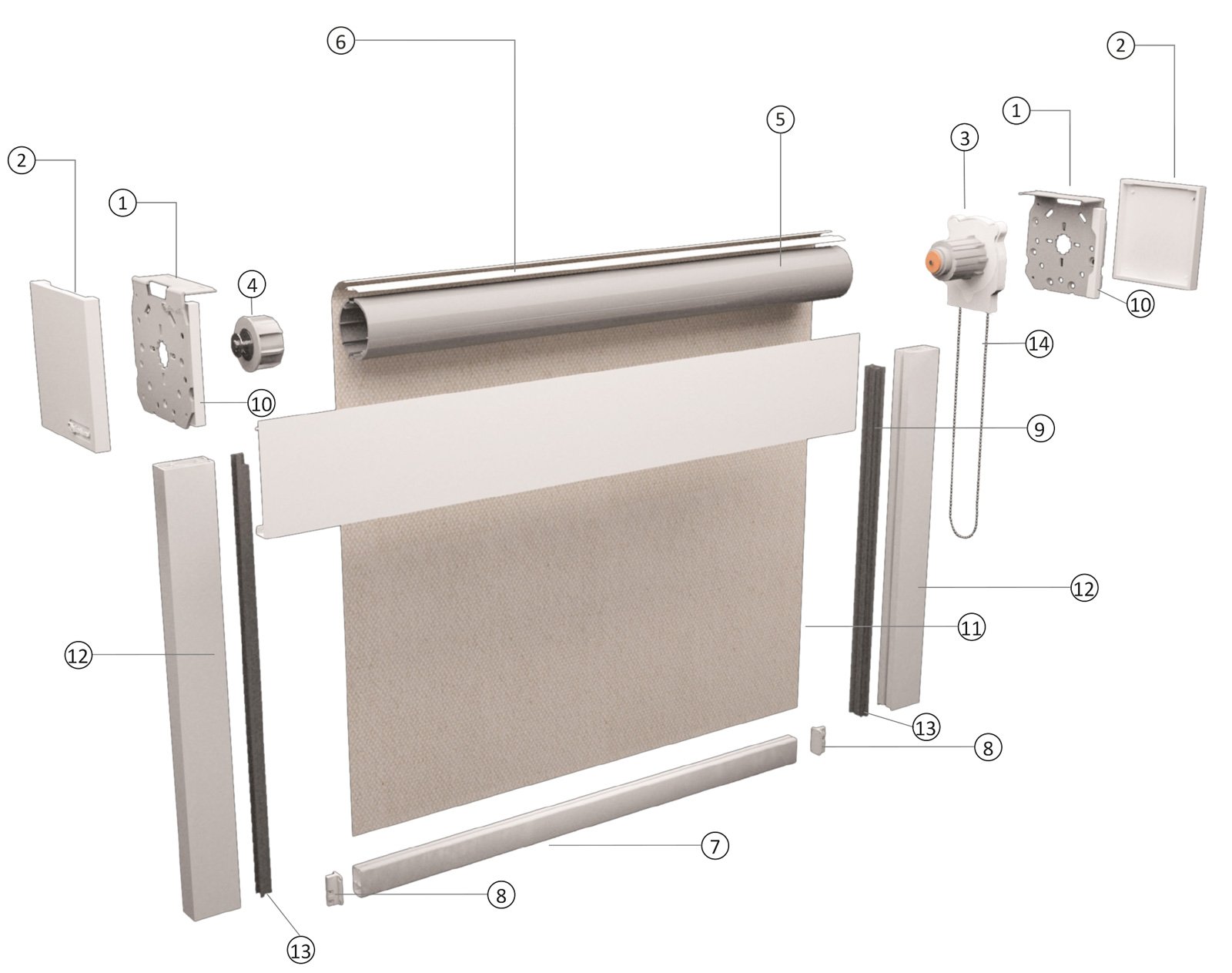

Roller system with zipper channel
- Room darkening or AV system
- The zipper channel stabilizes the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 1.85 inch diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- Additional weightening by steel profile is possible (Only with exposed bottom bar)
- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. End cap hem bar
- 9. Optional fascia
- 10. Fascia support
- 11. Fabric
- 12. Zipper channel
- 13. Zipper
- 14. Ball chain
Key Features

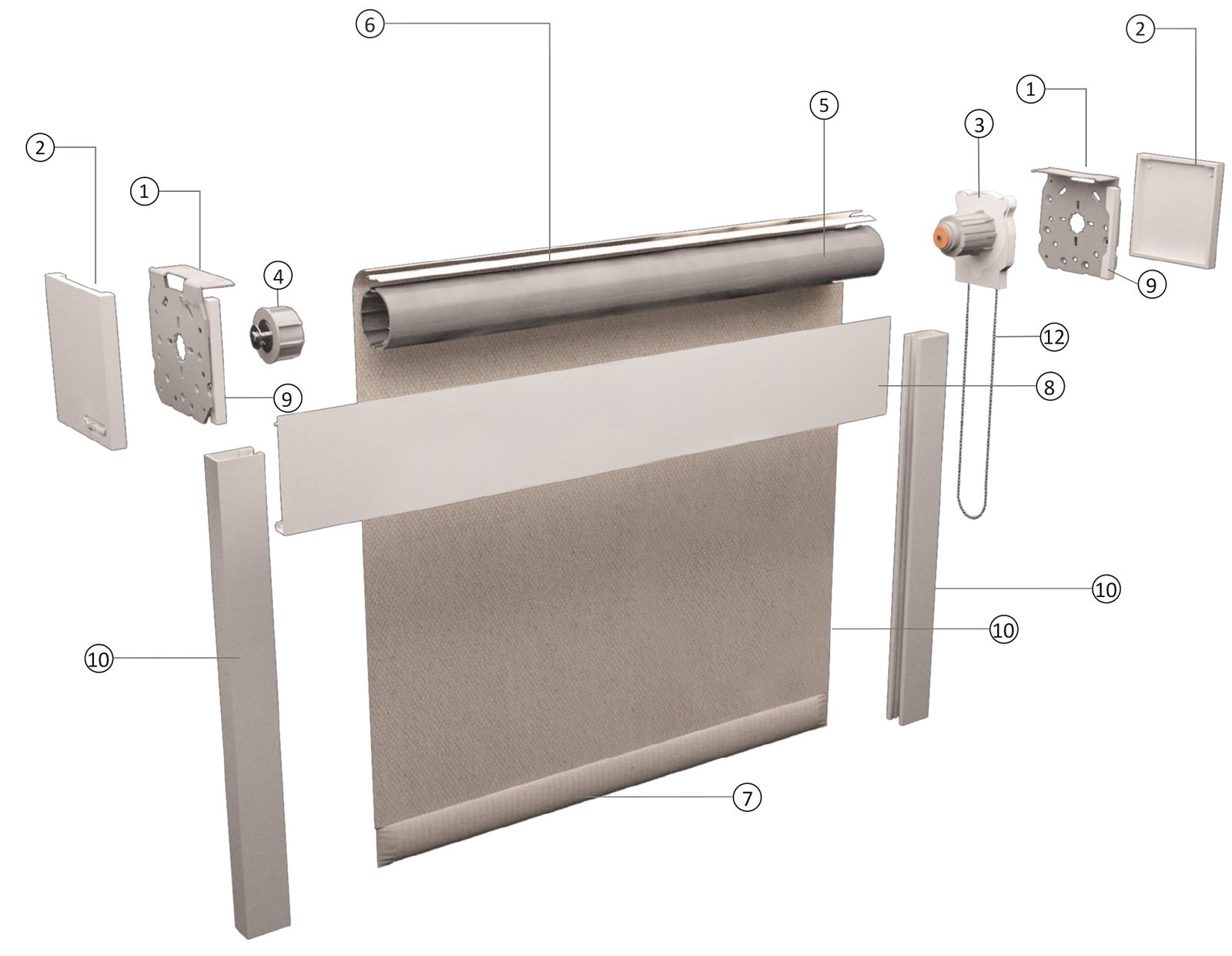

Roller system with side guide
- 4:1 ratio chain mechanism for easy operation on large blind sizes
- The zipper channel/side guide stabilizes the roller blind
- Built in auto stop mechanism for upper and lower limit setting
- Robust anti-deflection 1.85 inch diameter tube
- Aesthetic end caps
- Aesthetic aluminum fascia available as an option
- Face, top or wall fixing options
- 1. Mounting brackets
- 2. Bracket cover
- 3. Operating clutch
- 4. End plug
- 5. Tube
- 6. Mounting spline
- 7. Hem bar
- 8. Optional fascia
- 9. Fascia support
- 10. Fabric
- 11. Side guide
- 12. Ball chain
Key Features
Our Roller blinds come equipped with our standard Salire® Manual System
Sustainable fabric Collection
Roller blinds are safe in a child friendly environment
